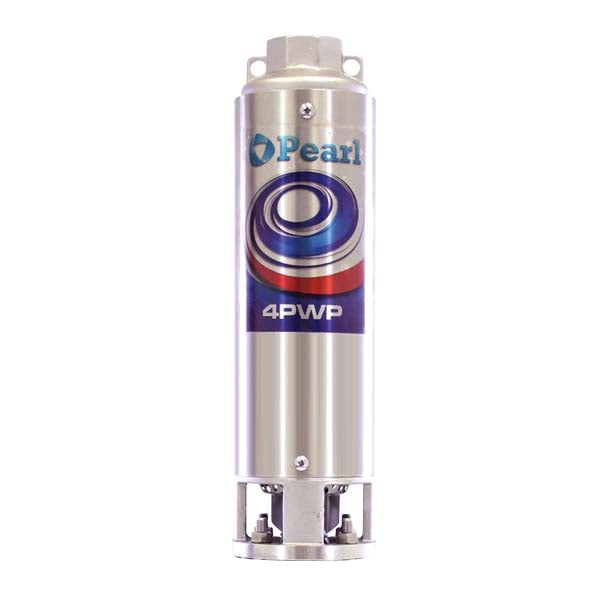

Pearl 4PWP-25G10 Submersible Pump End ( ONLY ) - ( 1 HP Rated ) - 25 GPM

• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Pump End ( ONLY )
• Pump Model: 4PWP-25G10

• Pump Motor Rating: Use with 1 HP Motor ( Not Included )

• Pump GPM Rated: 25 GPM
• Pump Stages: 7 Stages
• Pump TDH Rated: 175 TDH

• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel

SKU: 4PWP-25G10

Availability: Manufacturer

$179.99
Details
Product Details
Pearl 4PWP-25G10 Submersible Pump End ( ONLY ) - 1 HP Rated - 25 GPM

Multipurpose applications in the residential, agriculture and industrial markets

Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains
• Irrigation and water transfer

Standard Features of Pearl 4" Submersible Pumps Ends
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings
• Stainless steel check valves
Specification
Specification
Brand Pearl
Impeller Type Standard Impellers
Horsepower Rated 1 hp
Pump Diameter 4-Inch
Motor Wires ( 2W or 3W ) No
Voltage No
GPM Range 21 to 30 gpm
Total Dynamic Head (TDH) 125 to 150 (TDH), 150 to 175 (TDH)
SKU 4PWP-25G10
