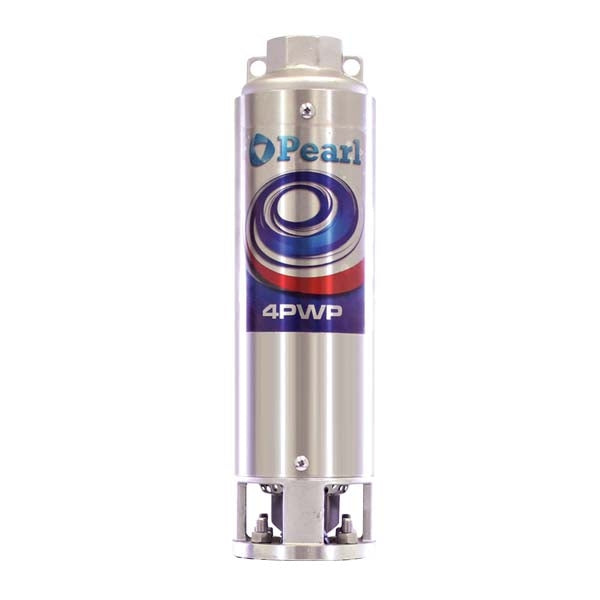

Pearl 4PWP-25G30 Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 25 GPM
• Series: 4PWP
• Product Type: 4" Submersible Pump - Pump End ( ONLY )
• Pump Model: 4PWP-25G30
• Pump Motor Rating: Use with 3 HP Motor ( Not Included )
• Pump GPM Rated: 25 GPM
• Pump Stages: 15 Stages

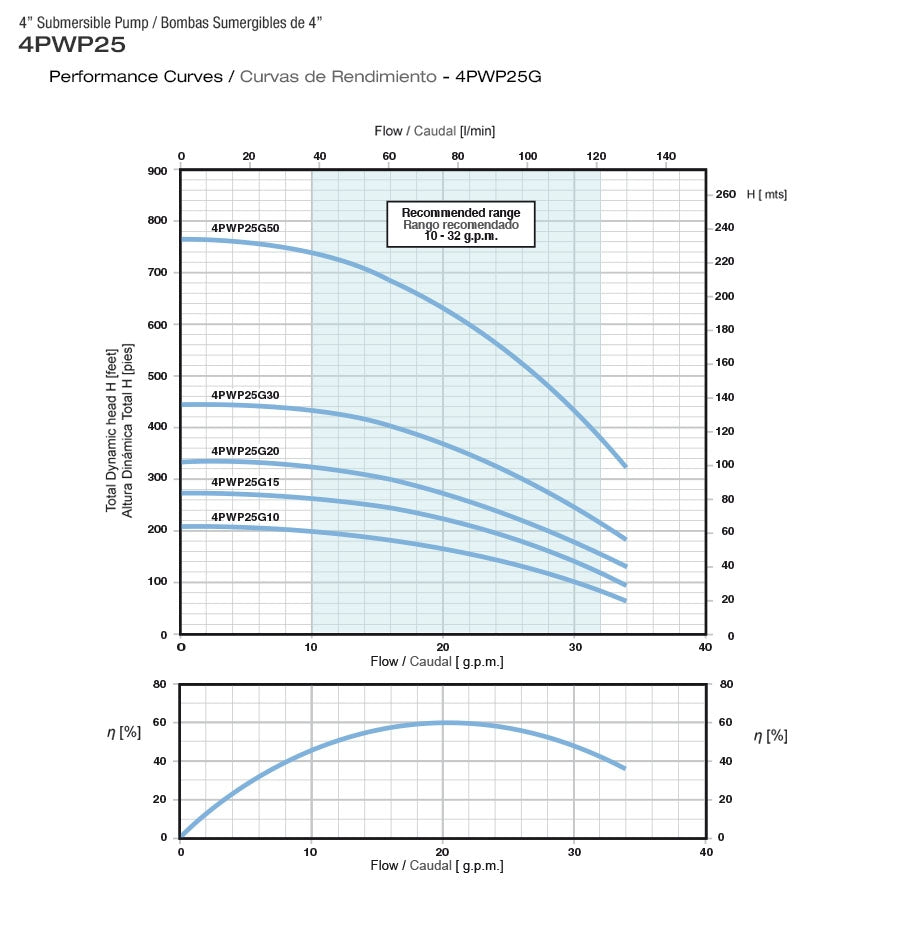

• Pump TDH Rated: 310 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
Availability: Manufacturer
Multipurpose applications in the residential, agriculture and industrial markets
Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains
• Irrigation and water transfer
Standard Features of Pearl 4" Submersible Pumps Ends
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings
• Stainless steel check valves
Brand | Pearl |
---|---|
Impeller Type | Standard Impellers |
Horsepower Rated | 3 hp |
Pump Diameter | 4-Inch |
Motor Wires ( 2W or 3W ) | No |
Voltage | No |
GPM Range | 21 to 30 gpm |
Total Dynamic Head (TDH) | 275 to 300 (TDH), 300 to 325 (TDH), 325 to 350 (TDH), 350 to 375 (TDH) |
SKU | 4PWP-25G30 |
