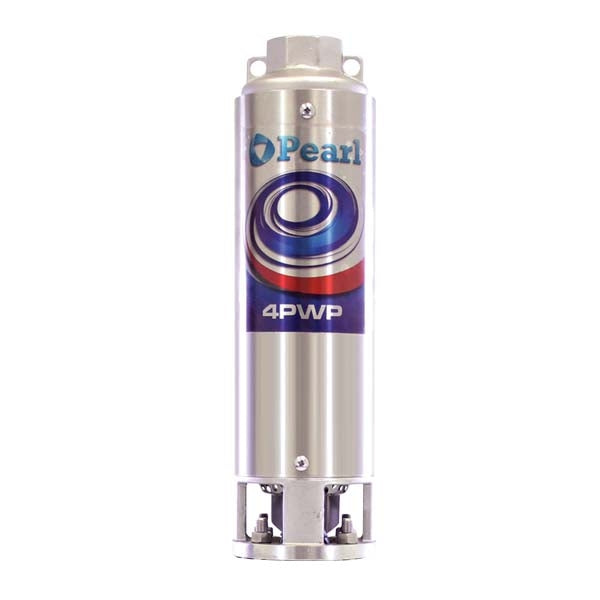

Pearl 4PWP-35G75 - High Capacity Submersible Pump End ( ONLY ) - ( 7-1/2 HP Rated ) - 35 GPM
• Manufacturer: Pearl
• Pump Series: 4PWP35G
• MPN: 4PWP-35G75
• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 7-1/2 HP
• Pump GPM Rating: 35 GPM

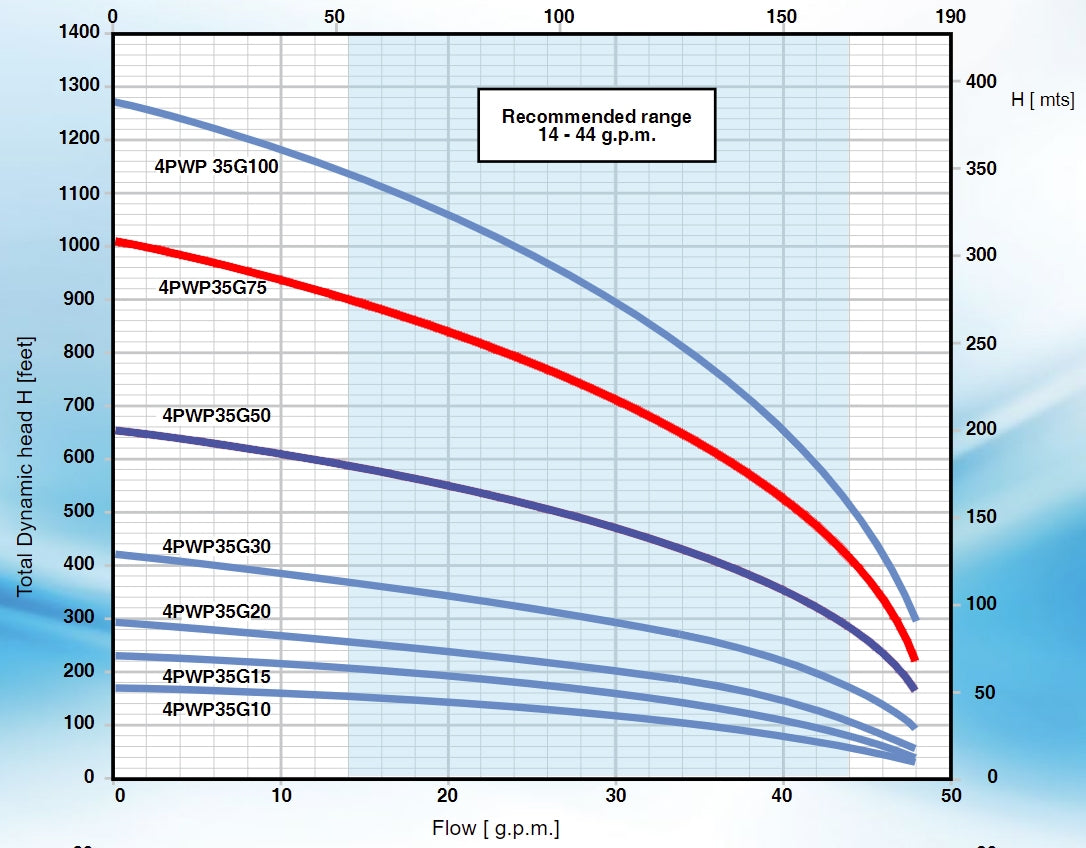

• Total Dynamic Head: 625 TDH
• Number of Stages: 34 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
• Pump Series: 4PWP35G
• MPN: 4PWP-35G75
• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 7-1/2 HP
• Pump GPM Rating: 35 GPM
• Total Dynamic Head: 625 TDH
• Number of Stages: 34 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
SKU:
4PWP-35G75
Availability: Manufacturer
$696.56
Details
Product Details
Pearl 4PWP-35G75 - High Capacity - 4" Submersible Pump - Pump End Only - ( 7-1/2 HP Motor Rated - Not Included ) - 35 GPM
Multipurpose applications in the residential, agriculture and industrial markets. Perfect for pressure boosting application, irrigation and water transfer systems.
Standard Features of Pearl High Capacity Submersible Pump Ends
• Continuous Duty: Pearl submersible pumps can operate continuously without damage to any component

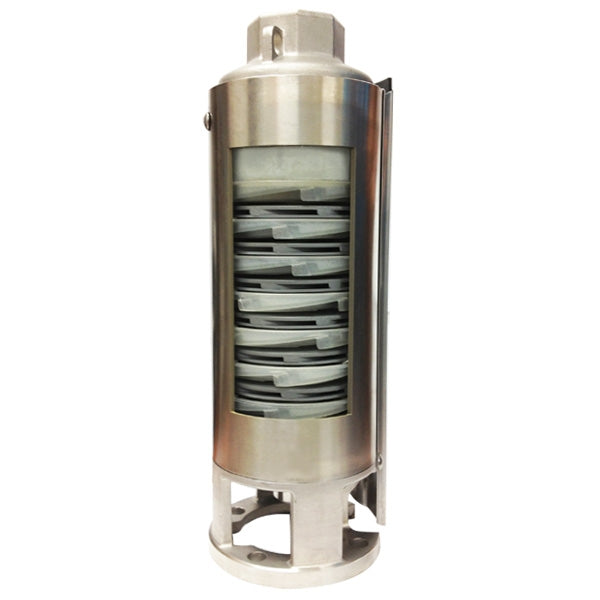

• Impeller Floating System: Designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19-stages or less are supplied with one shaft bearing
• Shaft for pumps with more than 19-stages are supplied with 2 shaft bearings
• Stainless steel check valves
• Discharge Pipe Connection: 2 Inch
Multipurpose applications in the residential, agriculture and industrial markets. Perfect for pressure boosting application, irrigation and water transfer systems.
Standard Features of Pearl High Capacity Submersible Pump Ends
• Continuous Duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller Floating System: Designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19-stages or less are supplied with one shaft bearing
• Shaft for pumps with more than 19-stages are supplied with 2 shaft bearings
• Stainless steel check valves
• Discharge Pipe Connection: 2 Inch
Specification
Specification
| Brand | Pearl |
|---|---|
| Impeller Type | Standard Impellers |
| Horsepower Rated | 7 1/2 hp |
| Pump Diameter | 4-Inch |
| Motor Wires ( 2W or 3W ) | No |
| Voltage | No |
| GPM Range | 31 to 40 gpm |
| Total Dynamic Head (TDH) | 525 to 550 (TDH), 550 to 575 (TDH), 575 to 600 (TDH), 600 to 625 (TDH), 625 to 650 (TDH), 650 to 675 (TDH), 675 to 700 (TDH) |
| SKU | 4PWP-35G75 |
