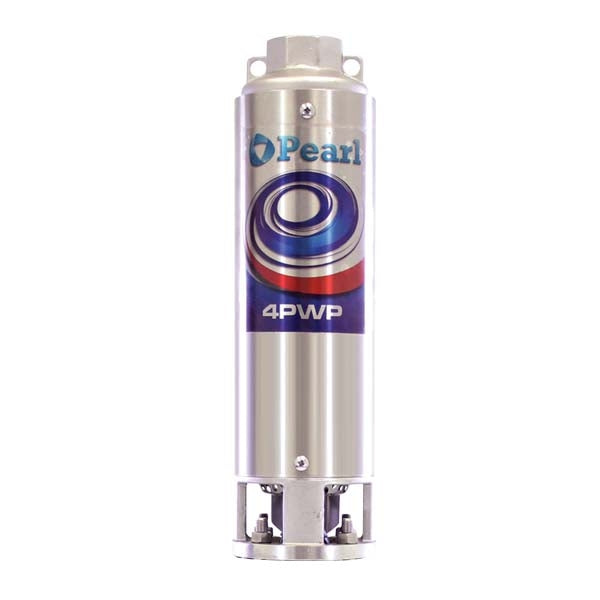

Pearl 4PWP-40G30 - High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 40 GPM
• Pump Series: 4PWP40G
• MPN: 4PWP-40G30
• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 3 HP
• Pump GPM Rating: 40 GPM

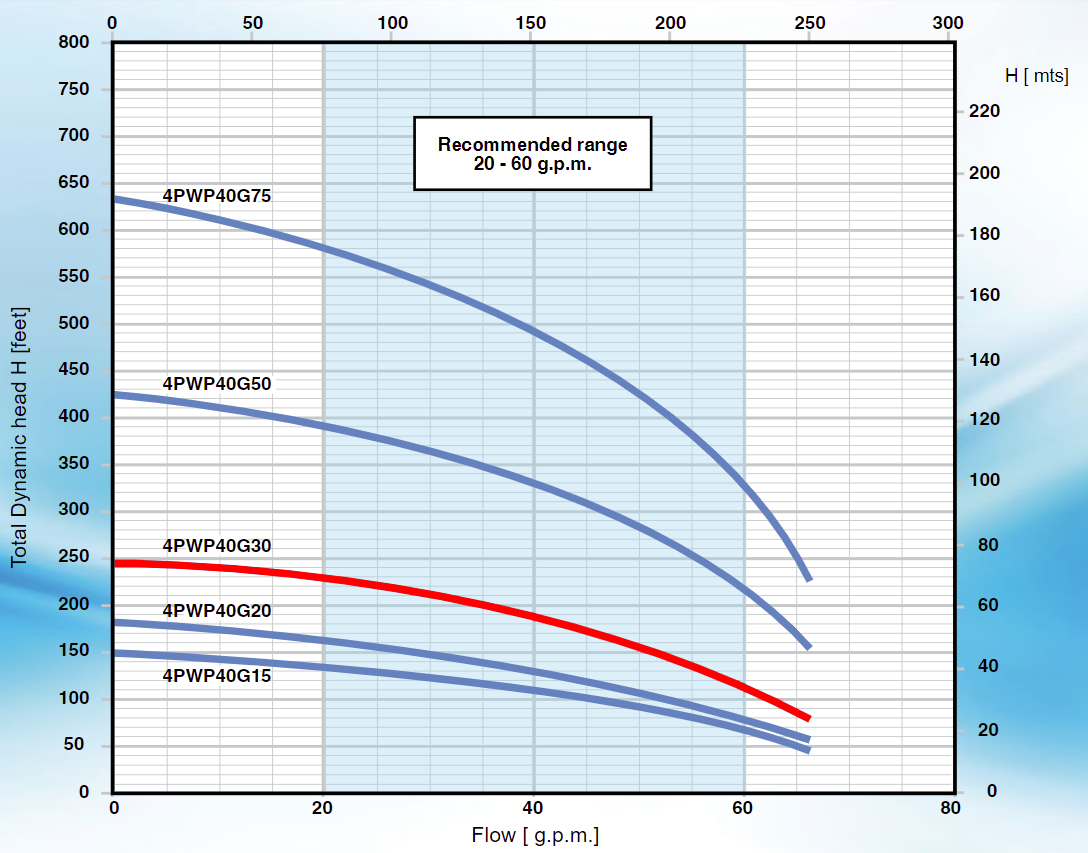

• Total Dynamic Head: 180 TDH

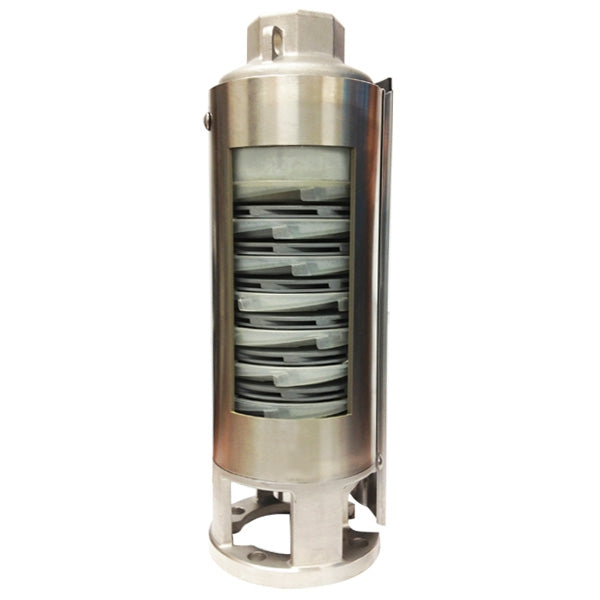

• Number of Stages: 8 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
Availability: Manufacturer
Multipurpose applications in the residential, agriculture and industrial markets. Perfect for pressure boosting application, irrigation and water transfer systems.
Standard Features of Pearl High Capacity Submersible Pump Ends
• Continuous Duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller Floating System: Designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19-stages or less are supplied with one shaft bearing
• Shaft for pumps with more than 19-stages are supplied with 2 shaft bearings

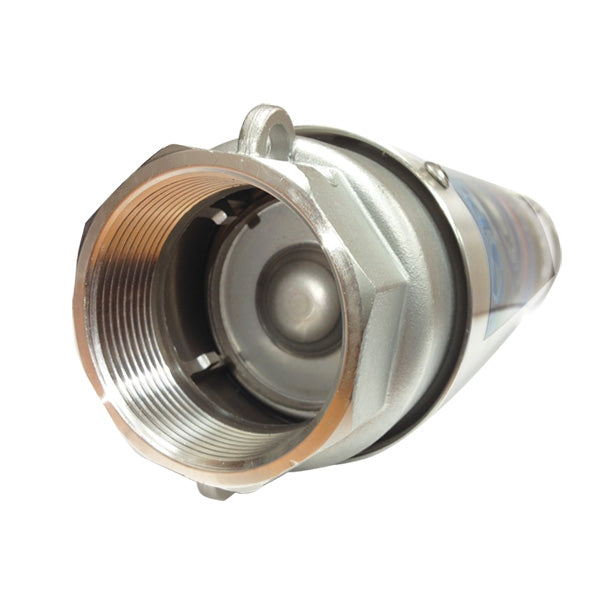

• Stainless steel check valves
• Backed by a 3 Year Manufacturer's Warranty
RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS
Goulds 40GS30
Goulds 45GS30
Goulds 45GS30CBM
Goulds 40GS30CBM
Franklin Electric 35FH3S4-PE
Franklin Electric 45FH3S4-PE
Brand | Pearl |
---|---|
Impeller Type | Standard Impellers |
Horsepower Rated | 3 hp |
Pump Diameter | 4-Inch |
Motor Wires ( 2W or 3W ) | No |
Voltage | No |
GPM Range | 31 to 40 gpm |
Total Dynamic Head (TDH) | 150 to 175 (TDH), 175 to 200 (TDH), 200 to 225 (TDH) |
SKU | 4PWP-40G30 |
