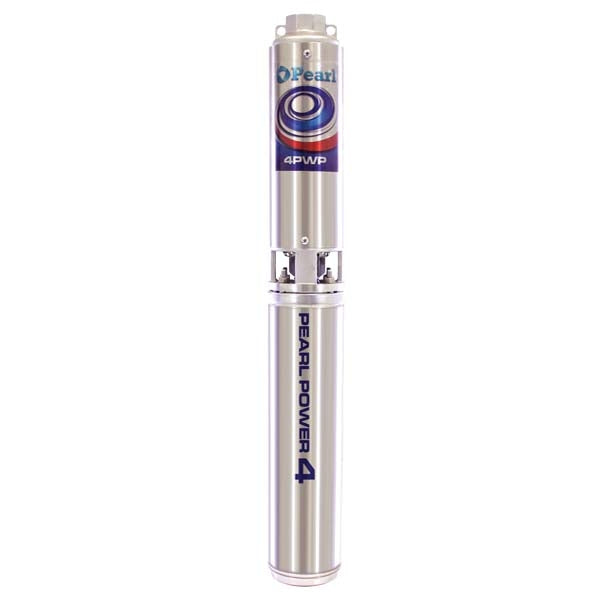

Pearl 4PWP18G-07C163P Submersible Pump - 18 GPM - 3/4 HP - 230 Volts ( 3 Wires + Ground ) - SS
• Manufacturer: Pearl
• Series: 4PWP
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Pump Model: 4PWP18G
• Motor Model: 07C163P
• Motor Horsepower: 3/4 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / N / Ground )
• Pump GPM Rated: 18 GPM
• Pump Stages: 6 Stages
• Pump TDH Rated: 140 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
• Series: 4PWP
• Product Type: 4" Submersible Pump - Complete Pump & Motor
• Pump Model: 4PWP18G
• Motor Model: 07C163P
• Motor Horsepower: 3/4 HP
• Motor Voltage: 230 Volts
• Motor Phase / Hz: Single Phase / 60 Hz
• Motor Wire Type: 3-Wire Motor
• Motor Lead: 4-Wires ( L1 / L2 / N / Ground )
• Pump GPM Rated: 18 GPM
• Pump Stages: 6 Stages
• Pump TDH Rated: 140 TDH
• Pump Discharge Connection: 1-1/4" NPT
• Pump Discharge Head & Wire Bracket: 300 Stainless Steel
SKU:
4PWP18G-07C163P
Availability: Manufacturer
$430.49
Details
Product Details
PEARL 4PWP18 Series - 18 GPM - 4" Submersible Pump - 3/4 HP - 230 Volts ( 3 Wires + Ground )
Multipurpose applications in the residential, agriculture and industrial markets.
Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains, etc
• Irrigation and water transfer
Standard Features of Pearl 4" Submersible Pumps
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings

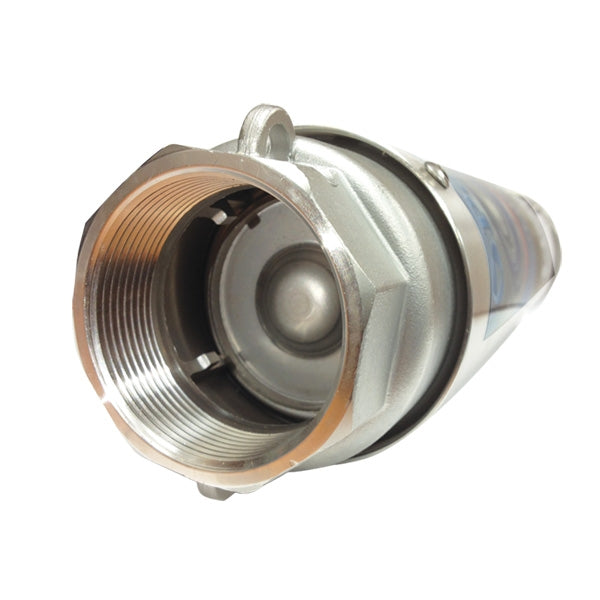

• Stainless steel check valves
Multipurpose applications in the residential, agriculture and industrial markets.
Typical Applications and Use
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains, etc
• Irrigation and water transfer
Standard Features of Pearl 4" Submersible Pumps
• Continuous duty: Pearl submersible pumps can operate continuously without damage to any component
• Impeller floating system: designed to guarantee the best performance and durability for sand handling
• NEMA Standard motor adapter
• Shaft for pumps with 19 and fewer stages are supplied with one shaft bearing. Shaft for pumps with more than 19 stages are supplied with 2 shaft bearings
• Stainless steel check valves
Specification
Specification
| Brand | Pearl |
|---|---|
| Impeller Type | Standard Impellers |
| Horsepower Rated | 3/4 hp |
| Pump Diameter | 4-Inch |
| Motor Wires ( 2W or 3W ) | 3W ( 3-Wires + Ground ) |
| Voltage | 230 Volt |
| GPM Range | 16 to 20 gpm |
| Total Dynamic Head (TDH) | 100 to 125 (TDH), 125 to 150 (TDH) |
| SKU | 4PWP18G-07C163P |
