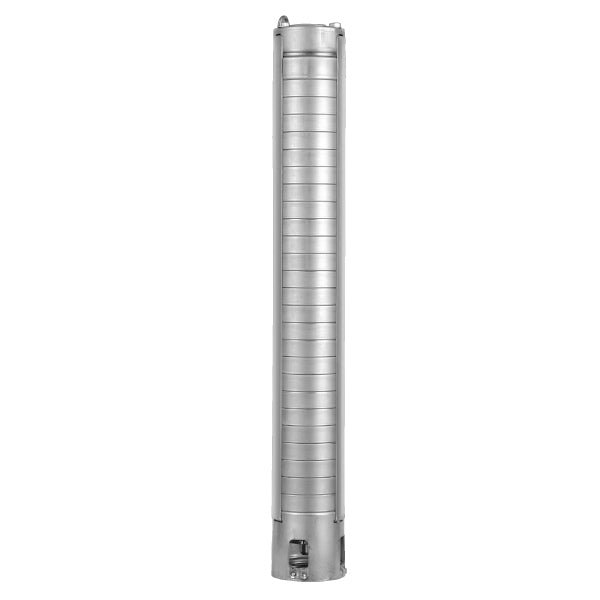

Pearl 4PWS-40G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 40 GPM - Full Stainless Steel
• Pump Series: 4PWS40G
• MPN: 4PWS-40G30
• Pump Type: 4" Submersible - Pump End Only
NOTE: No Motor Included - Purchased Separately
• Motor Horsepower Rated: 3 HP
• Pump GPM Rating: 40 GPM
• Total Dynamic Head: 185 TDH
• Number of Stages: 9 - Stages
• Pipe Connection: 2" NPT
• Check Valve: YES - Stainless Steel
Availability: Manufacturer
Pearl 4PWS-40G30 High Capacity Submersible Pump End ( ONLY ) - ( 3 HP Rated ) - 40 GPM
The Pearl 4PWS range of submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The 4PWS pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction, and long service life.
Typical Application for Submersible Pump
• Potable water supply from deep wells
• Agricultural-Irrigation, livestock watering, etc.
• Municipal and Industrial
• Pressure boosting
• Fountains / Pond Pump
PUMPED LIQUIDS - Clean water and any non-abrasive liquid compatible with the material components
OPERATING CONDITIONS - Maximum ambient temperature (Liquid): 86°F
Standard Features of the 4PWS All Stainless Steel Submersible Pumps
• Stainless steel construction designed and built for years of trouble free operation

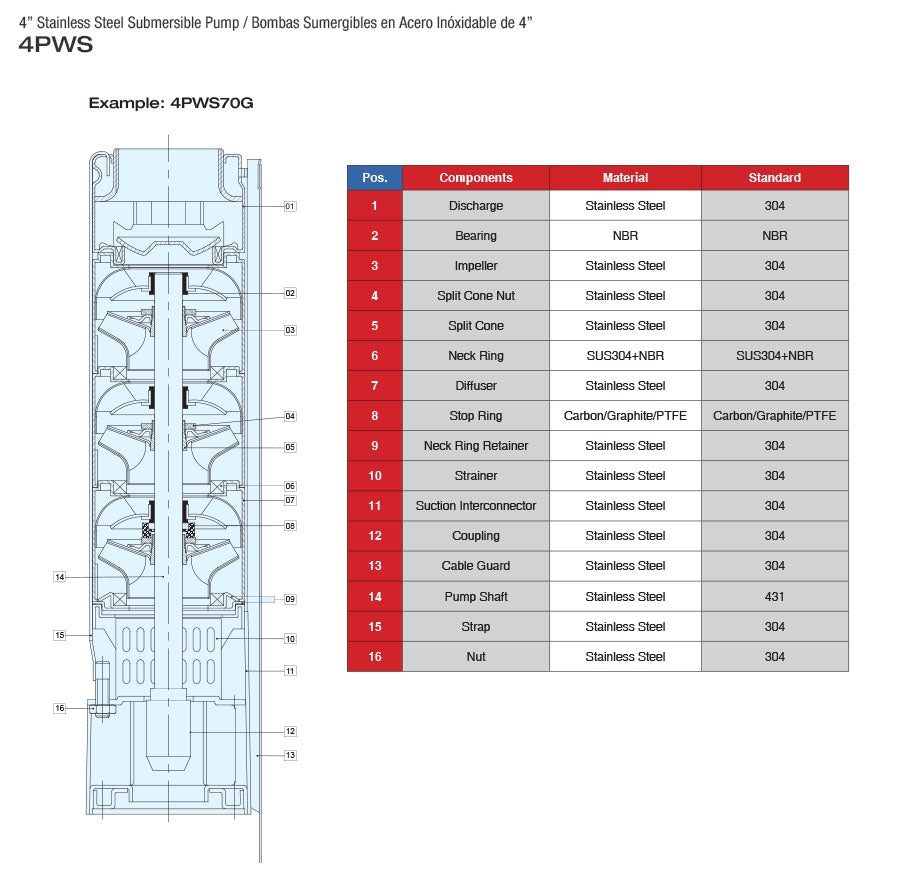

• All metal parts are made of 304 stainless steel, except for the shaft, which is made of 431 stainless steel

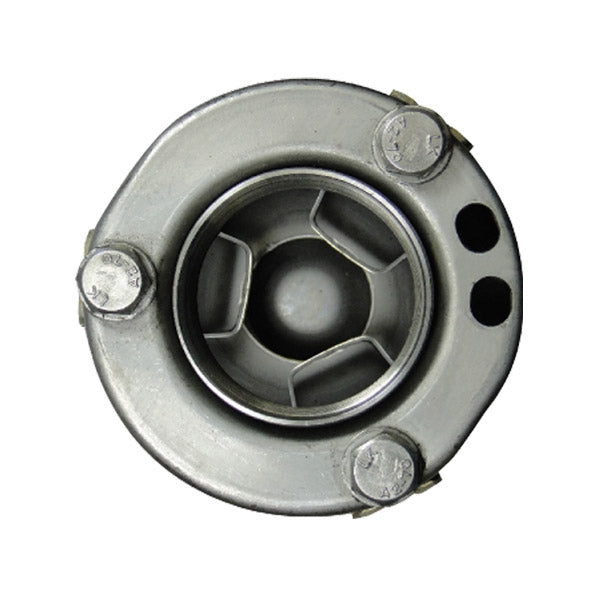

• Heavy duty stainless steel discharge head with built-in check valve for long life and ease of installation
• Smooth safety hook
• Mounting specifications are according to NEMA standards
• High quality shaft bearings providing low friction and high wear resistance

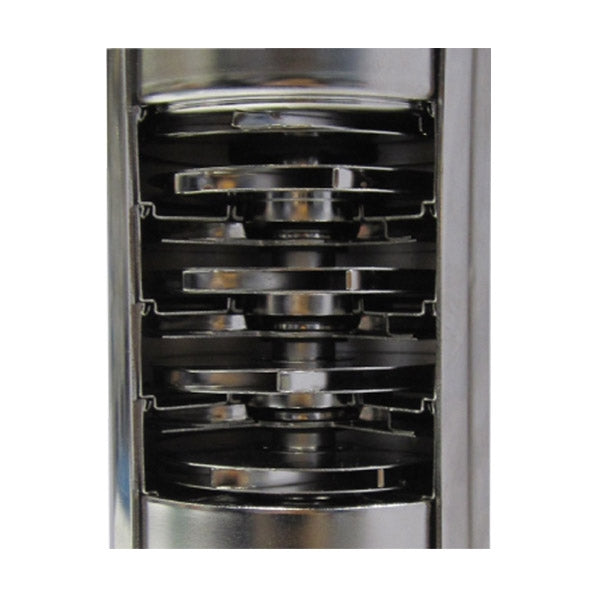

• Heavy duty stainless steel impellers & diffusers ensuring optimal performance
• Stainless steel strainer to restrict the entry of sand and other extraneous material
RECOMMENDED REPLACEMENT FOR THESE SUBMERSIBLE PUMP ENDS
Goulds 40GS30 - Pearl 40G30 Compared To Goulds 40GS30 Submersible Pump
Goulds 45GS30 - Pearl 40G30 Compared To Goulds 40GS30 Submersible Pump
Goulds 45GS30CBM
Goulds 40GS30CBM
Franklin Electric 35FH3S4-PE
Franklin Electric 45FH3S4-PE
Brand | Pearl |
---|---|
Impeller Type | Stainless Steel Impellers |
Horsepower Rated | 3 hp |
Pump Diameter | 4-Inch |
Motor Wires ( 2W or 3W ) | No |
Voltage | No |
GPM Range | 31 to 40 gpm |
Total Dynamic Head (TDH) | 150 to 175 (TDH), 175 to 200 (TDH) |
SKU | 4PWS-40G30 |
