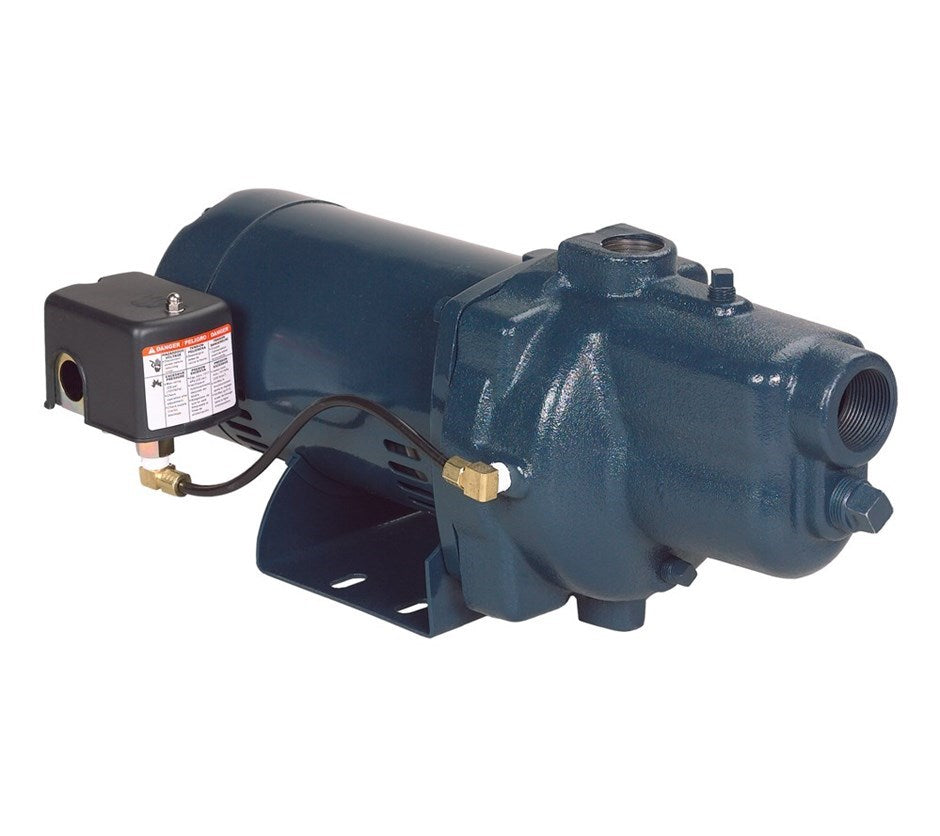

Franklin Electric VersaJet FVJ07CI - Shallow Well Jet Pump - 0.75 HP
• Model: FVJ07CI (Replaces J-Class JVJ07CI)
• SKU: 91180007 (Replaces 91160007)
• Shallow Well Jet Pump (Less than 25 ft of suction)
• Horsepower: 3/4 HP
• Dual Voltage: 115V / 230V (Verify Voltage Setting PRIOR to installing)
• Includes Preset 30/50 Pressure Switch
• 1-1/4” FNPT Suction
• 1” FNPT Discharge
Franklin's FPS VersaJet Pumps are built for easy customization and this pump covers a variety of performance needs.
Each Jet Pump can be configured for: ■ Standard performance ■ High pressure ■ High flow
With Franklin Electric's patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.
Designed and manufactured with durable materials, VersaJet delivers the quality, reliability, and performance you expect from Franklin Electric products.
Franklin Electric VersaJet offers ease of installation in less time
■ Revolutionary Patent Pending "Quick-Change" jet nozzle replacement system allows easy customization of the pump. Performance can be changed quickly from a high pressure to a high flow set-up without removing the plumbing or opening the case
■ Dual voltage motor can be set to run at either 115V or 230V (Must be checked internally and wired for your needs)
■ Pressure gauge port supplied for easy addition of optional pressure gauge
■ Pressure switch is installed and set at 30/50 PSI
■ Built-in drain plug for easy winterizing and servicing
■ Handles water temperatures up to 120 Degrees and shut-off pressures up to 90 PSI
■ 1-1/4” FNPT suction
■ 1” FNPT discharge
■ UL778 approved for indoor or outdoor use.
|Pump Type||Jet Pumps|
|Horsepower Rated||3/4 hp|
|Voltage||115 / 230 Volts|
|Motor Wires ( 2W or 3W )||N/A|
|Motor Phase||Single Phase Motor|
|GPM Range||13 to 16 gpm|
|Total Dynamic Head||51 to 100 ft ( TDH )|
