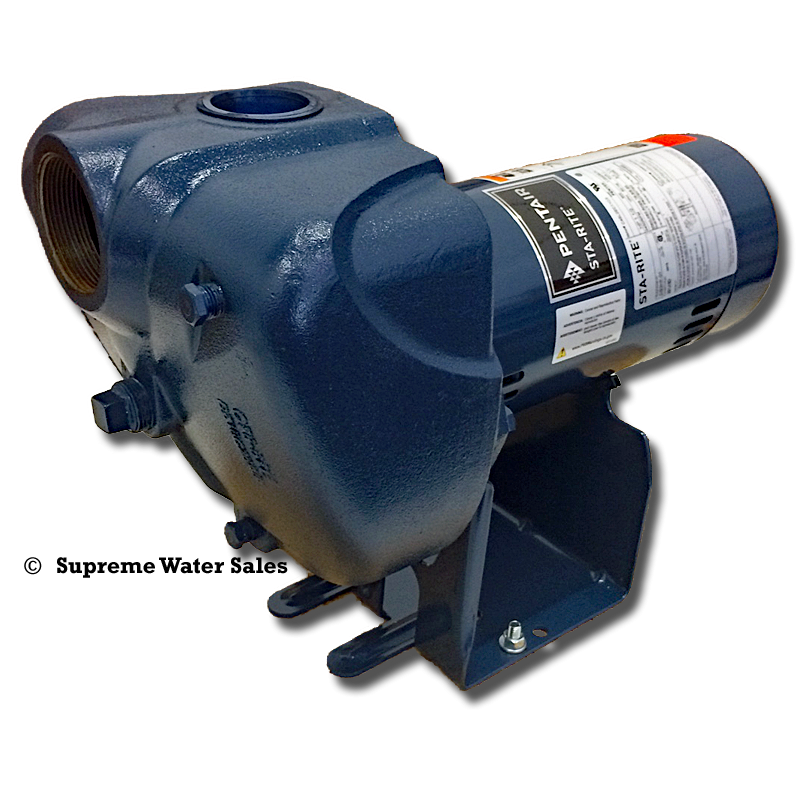

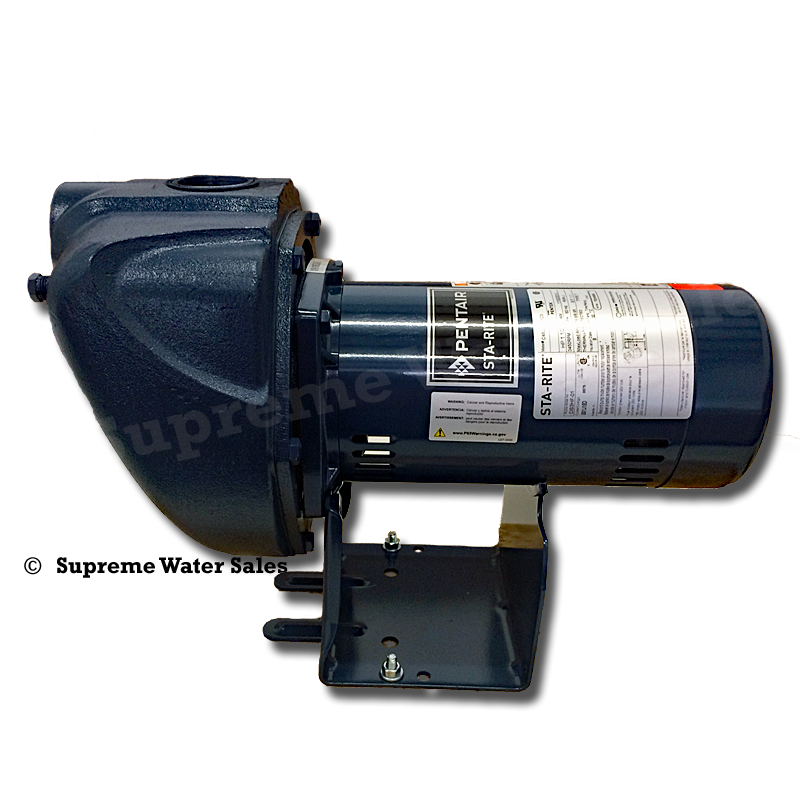

StaRite DS3HG-01 Pro-Storm DS3 - Centrifugal Irrigation Pump - 2.0 HP

• Manufacturer: Pentair
• Brand: StaRite
• Series: DS3 Pro-Storm
• MPN: DS3HG-01
• Horsepower: 2 HP
• Voltage: 115/230v
• Pipe Connections: 2" NPT ( Inlet ) / 2" NPT ( Outlet )
• Dimensions: 18.54" (L) x 13.08" (H) x 10.0" (W)
• Weight: 83 Lbs
SKU: DS3HG-01

Availability: Stocked

$489.99
Details
Product Details
Sta-Rite Pro-Storm DS3HG-01 DS3 Series Centrifugal Pump
The PRO-Storm™ Series of cast iron sprinklers offer superior unmatched performance, available. The PRO-Storm models offer“single-body-fill” priming to 25-foot lifts, in less than 5 minutes! The PRO-Storm models exceed the strict safety requirements of Underwriters Laboratory UL778, and CSA. Required by many state and local codes.The PRO-Storm models are completely interchangeable with the original STA-RITE DS2 Series models, saving costly plumbing “change-out” dollars and installation headaches!

Applications / Uses of the DS3 Pumps
• Residential Irrigation Pump: Can be safely operated by timer or other automatic device
• Contractors: Dewatering excavation, water transfer and supply water
• Agriculture: Seed bed and plot irrigation, stock watering
• Industrial: Sump drainage, marine pumping, liquid transfer and supply operations

General Build Specifications
• Body and Seal Plate – Close-grained cast iron
• Impeller – Noryl® Diffuser – Reinforced polypropylene
• Shaft – One-piece threaded 416 stainless steel
• Base – Steel, 10 gauge
• Motor – 2-compartment

StaRite Pro-Storm DS3 Series Standard Features
• Rugged Construction: Close-grained cast iron body, specially treated for corrosion resistance.
• Noryl Impeller: Precision-molded for perfect balance...ultra-smooth for highest performance and efficiency
• Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser
• Easy Serviceability: Normal wearing parts are easily accessible for service and replacement, without disturbing piping or mounting
• Motor Windings: Superior insulation materials protect against excessive moisture and contaminants...ensures prolonged motor life
• Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced
• Drain Port: Provided for easy winterizing

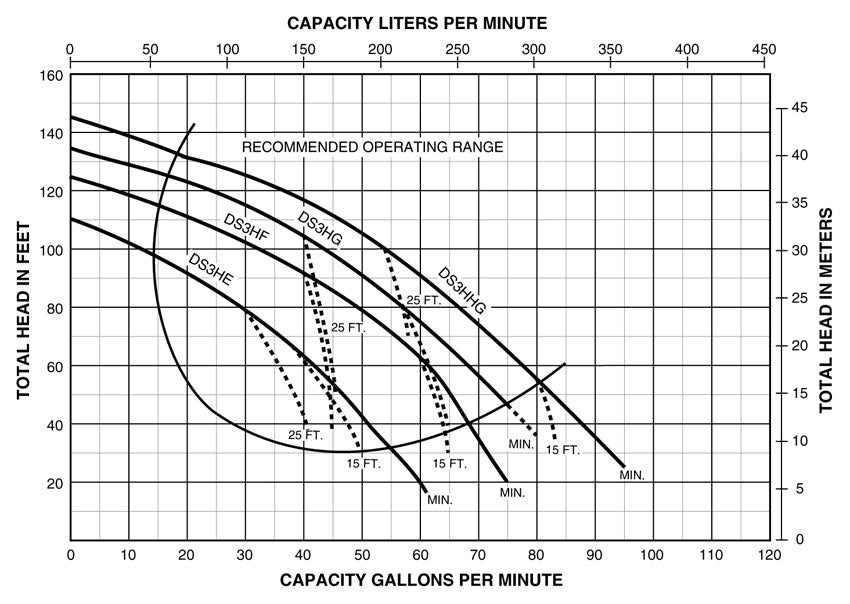

DS3HG Pro-Storm - PUMP PERFORMANCE
• Typical / Recommended Operating Conditions (Flow Rate): 10' SUCTION LIFT @ 40 PSI = 42 gpm

GPM Rating with 20 psi @ 5 ft suction lift - 72 gpm
GPM Rating with 30 psi @ 5 ft suction lift - 60 gpm
GPM Rating with 40 psi @ 5 ft suction lift - 45 gpm
GPM Rating with 50 psi @ 5 ft suction lift - 23 gpm

GPM Rating with 20 psi @ 10 ft suction lift - 70 gpm
GPM Rating with 30 psi @ 10 ft suction lift - 58 gpm
GPM Rating with 40 psi @ 10 ft suction lift - 42 gpm
GPM Rating with 50 psi @ 10 ft suction lift - 16 gpm

GPM Rating with 20 psi @ 15 ft suction lift - 67 gpm
GPM Rating with 30 psi @ 15 ft suction lift - 54 gpm
GPM Rating with 40 psi @ 15 ft suction lift - 37 gpm
GPM Rating with 50 psi @ 15 ft suction lift - NOT RECOMMENDED

GPM Rating with 20 psi @ 20 ft suction lift - 65 gpm
GPM Rating with 30 psi @ 20 ft suction lift - 51 gpm
GPM Rating with 40 psi @ 20 ft suction lift - 30 gpm
GPM Rating with 50 psi @ 20 ft suction lift - NOT RECOMMENDED

GPM Rating with 20 psi @ MAX 25 ft suction lift - 62 gpm
GPM Rating with 30 psi @ MAX 25 ft suction lift - 47 gpm
GPM Rating with 40 psi @ MAX 25 ft suction lift - 27 gpm
GPM Rating with 50 psi @ MAX 25 ft suction lift - NOT RECOMMENDED

Specification
Specification
Pump / Equipment Type Irrigation Pumps
Multi-Stage No
Horsepower Rated 2 hp
Voltage 115 / 230 Volts
Motor Wires ( 2W or 3W ) N/A
GPM Range 41 to 50 gpm
Total Dynamic Head 51 to 100 ft ( TDH )
Brand StaRite
SKU DS3HG-01
