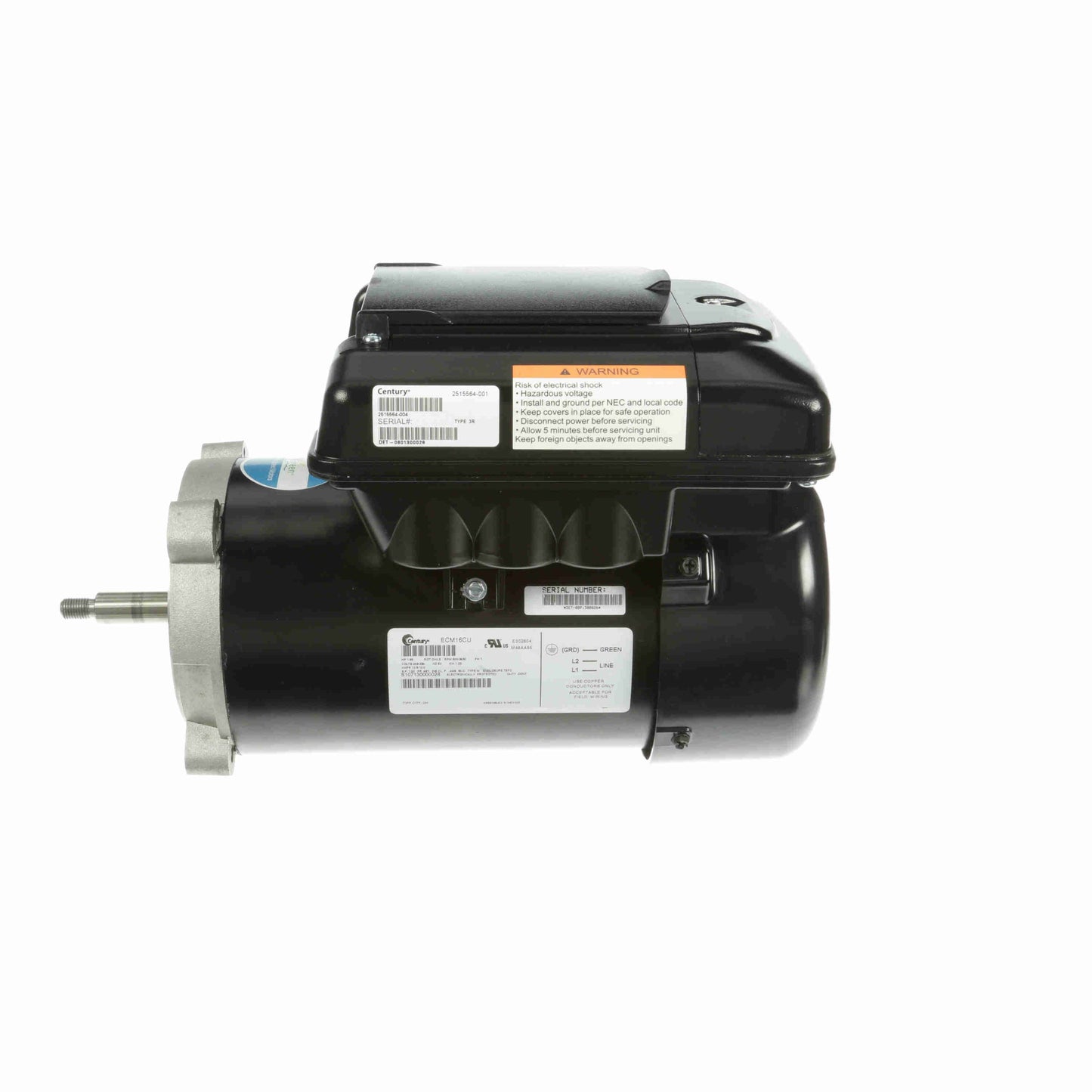

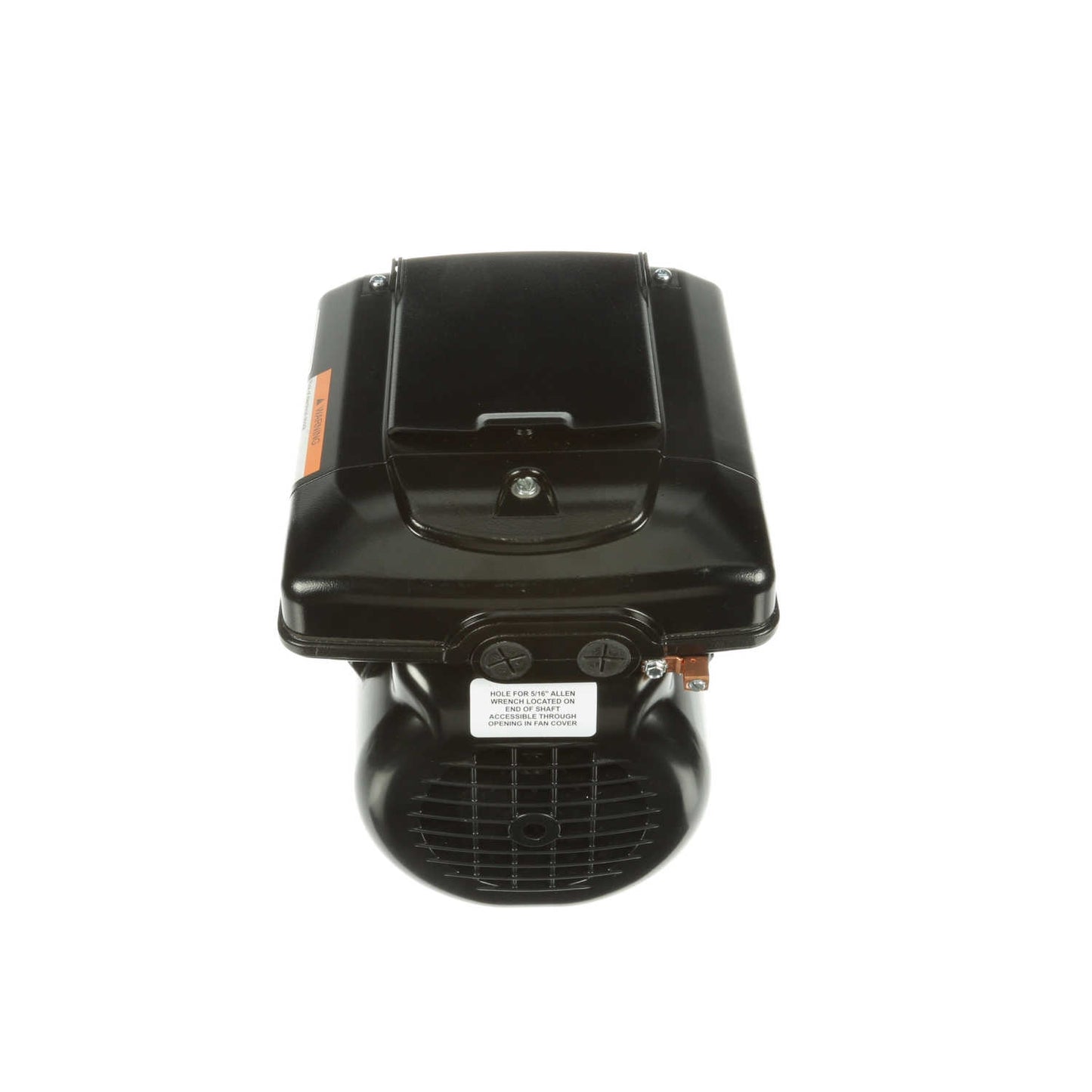

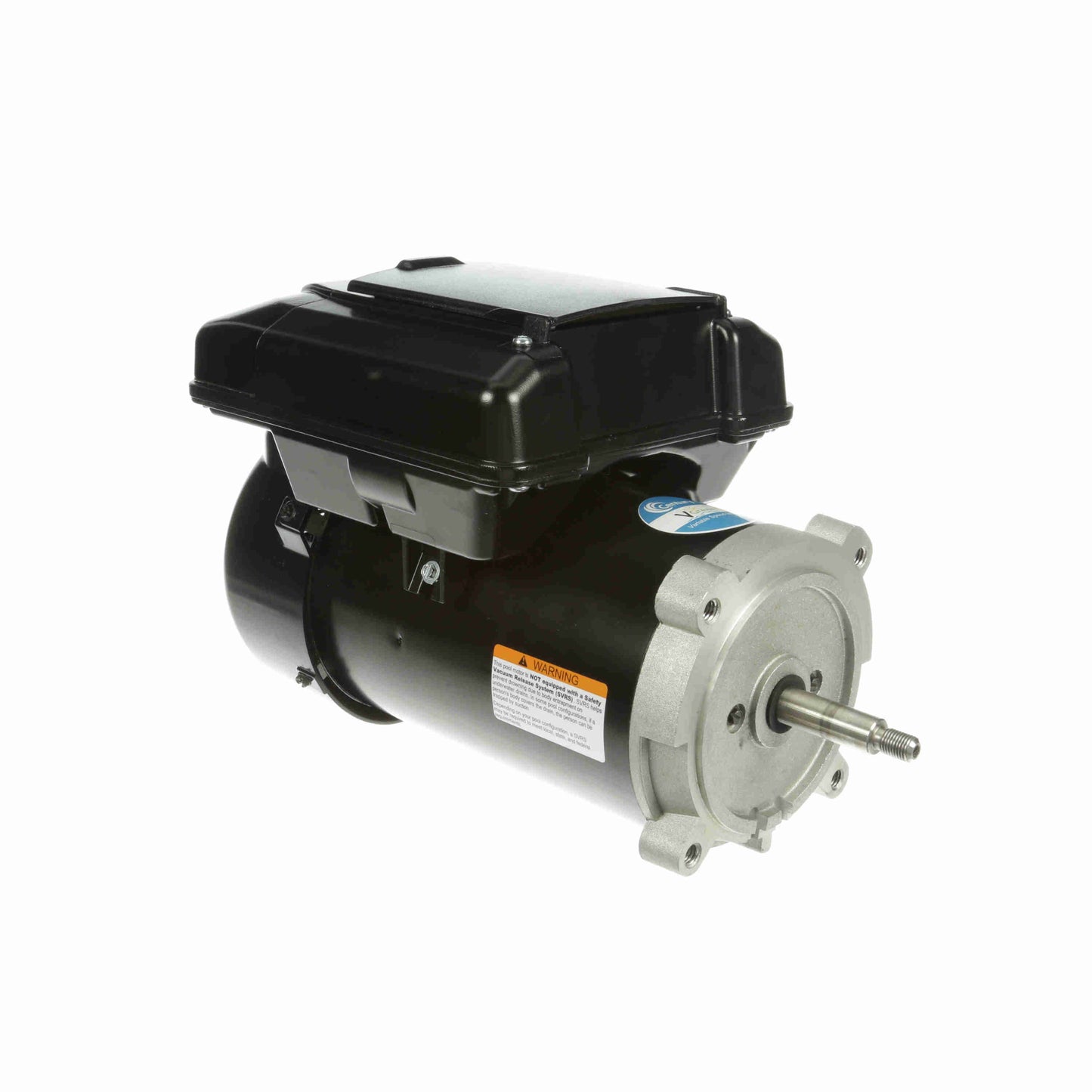

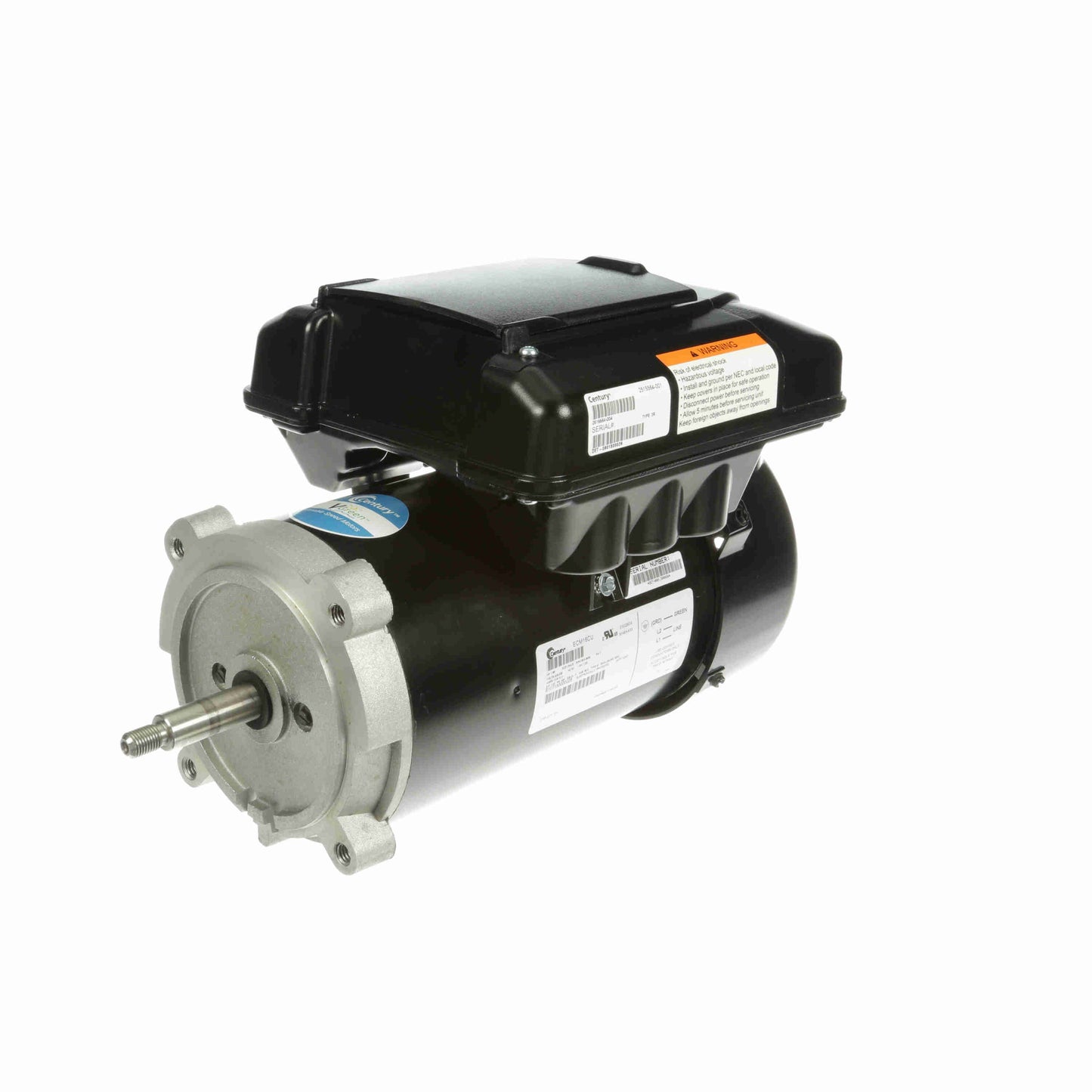

Century Electric ECM16CU - VGreen165 Variable Speed Pool Pump Motor - 56J Frame - C Face (Round) - 1.65 HP - 230 Volt (Only)

• Manufacturer: Regal Beloit America, Inc
• Brand: Century Electric ( Formally AO Smith )
• Motor Series: VGreen165
• Speed: Variable Speed

• HP Rated: 1.65 HP
• Service Factor: 1.0
• THP: 0.50 THP ( Min ) to 1.65 THP ( Max )
• RPM Range: 600 to 3450 RPM
• Voltage: 208 - 230 Volts
• Maximum Amp: 10.5 - 10.0 Amps
• Flange: C Flange (Round)
• Frame: 56J
• TEFC
• Percent Energy Savings: 80%

Not sure which GO-KIT or Mechanical Seal your pool pump requires?
Click Here to View Pump & Seal Guide ( Below )

SKU: ECM16CU

Availability: Stocked

$359.00
Details
Product Details
About the NEW Century Electric - VGreen® 165 Motor
The reasons a VGreen® 165 premium-efficiency replacement motor can offer such impressive savings are numerous including:An integrated user interface that allows for easier installation and operation of a variable speed motor. The all-in-one design reduces installation time and expense with no additional wiring required.The amount of power required to move the water through the pipes drops much more quickly than the speed. While it may take one horsepower to move the water through the pipes on high speed, it only takes 1/8 horsepower to move one half as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount of water as on high speed, the lower horsepower results in significant energy savings.

VGreen 165 - VS Motors - Product Features

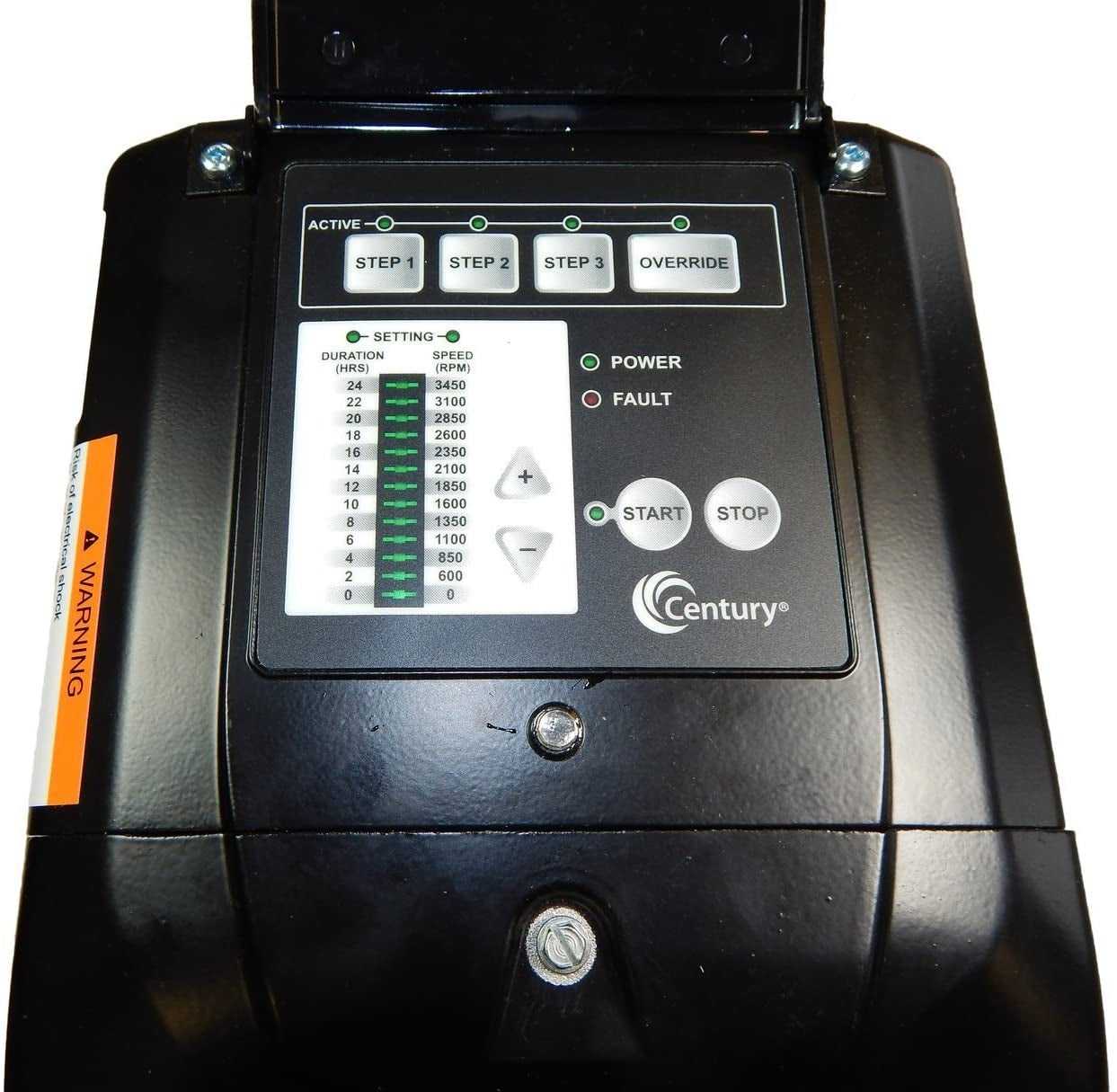

• Integrated User Interface
• Timer Mode
• Manual Mode
• Freeze Protection
• Noise Reduction Design
• Factory Default Settings Reset
• Ball Bearing
• TEFC
• Rotation: CCWPE
• Single Phase
• Schedule Advance
• Full Variable Speed (600-3450 RPM)
• Max Output of 1.65 THP
• ECM Design
• Program Memory Back-Up
• 303 Stainless Steel Shaft
• Class F Insulation
• 50 ̊C Ambient
• UV and Rain-Proof Enclosure
• Keypad Lockout
• Digital Inputs for Third Party Automation

REPLACE ANY MOTOR WITH A VGREEN® MOTOR The VGreen motor can replace any single speed motor without replacing the pump, turning any pool into a high-efficiency system that is better for the environment and lowers the cost of pool ownership.

VGREEN® MOTOR EFFICIENCY The integrated user interface allows for easier and faster installation while the durable TEFC construction with ECM technology delivers 40 to 80 percent energy savings versus a single speed motor.

PROGRAMMING FLEXIBILITY The VGreen® variable speed motor offers three variable speeds, programmable from 600 to 3450 RPM, allowing users to easily identify and set the appropriate speeds to minimize energy consumption and lower the overall cost of pool ownership, all while maintaining the proper pool environment. The programming flexibility offered by the VGreen variable speed motor makes it possible for pool owners to easily identify and adjust speed and duration settings necessary to maintain their pools and to maximize energy savings.

REPLACEMENT VERSATILITY Available in square flange, C-face and thru bolt configurations, the highly versatile VGreen® variable speed motor can be utilized in pool pump applications ranging from 1/2 to 1.65 total horsepower. Installation on most pumps, regardless of manufacturer, is as simple as replacing a standard single speed motor. There is no additional wiring or plumbing required, thanks to the VGreen motor’s integrated user interface. Equipped with digital inputs, the VGreen variable speed motor is even compatible with third party pool automation systems.

THE NEXT GENERATION OF THE MOTOR USER INTERFACE EXPERIENCE FROM CENTURY® MOTORS.
Always thriving on innovation, we now offer wireless capability for VGreen® variable speed motors. VLink® wireless motor interface offers the ability to set, adjust, and monitor pump motor schedules from mobile devices. The program flexibility allows the user to monitor and manage energy consumption as well as set custom overrides for parties and cleaning. VLink wireless motor interface works with both Android and iOS mobile devices. Now, energy conscious pool owners have the ability to wirelessly monitor and manage their VGreen pump motor anytime anywhere!

Important:
The pool motors on this page are NOT equipped with a Safety Vacuum Release System (SVRS).
SVRS helps prevent drowning due to body entrapment on underwater drains. In some pool configurations, if a person’s body covers the drain, the person can be trapped by suction.
The SVRS turns off the pump if this occurs. Depending on your pool configuration, a SVRS may be required to meet local, state, and federal requirements.



Pool Pumps & Seals Guide for the VGreen165 Motor



POOL PUMP ( Models )GO-KITs
(Includes Mechanical Seal)
MECHANICAL SEAL (ONLY)
Hayward Max-Flo SP2800 / SP2800X
Hayward Max-Flo
GO-KIT1 (Chlorine Pools)
GO-KIT1V (Salt Water Pools)
PSR-201 ( Chlorine Pools )
PSR-201V ( Salt Water Pools )
Hayward Super II SP3000 / SP3000X
Hayward Super II
GO-KIT2 (Chlorine Pools)
GO-KIT2V (Salt Water Pools)
PSR-201 ( Chlorine Pools )
PSR-201V ( Salt Water Pools )
Hayward Super Pump SP2600 / SP2600X
Hayward Super Pump
GO-KIT3 (Chlorine Pools)
GO-KIT3V (Salt Water Pools)
PSR-201 ( Chlorine Pools )
PSR-201V ( Salt Water Pools )

Specification
Specification
Brand Century Electric Motors
Horsepower ( HP ) 1.65 hp
Service Factor ( SF ) 1.00 SF
Total Horsepower ( THP ) 1.65 THP
Voltage 208-230V
Motor Speeds Variable Speed
Motor Frame 56J
Motor Flange Type C-Face ( Round )
SKU ECM16CU
