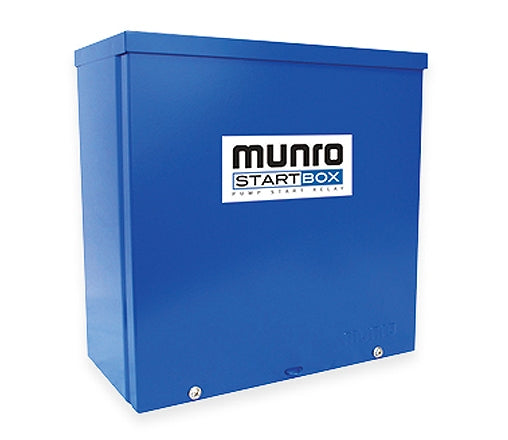

Munro StartBox MPSR242W11 - 2-Wire Decoder Compatible - 24V Controller to 120V Pump
• Manufacturer: Munro
• Series: StartBox 2-Wire Decoder Compatible
• MPN: MPSR242W11
• Coil: 110V
• Control / Signal Voltage: Any 24V Lawn Controller
• Pump / Line Voltage: 120V
• MAX HP ( @ 120V ): 2 HP
• UL-50 Type 3R Listed Enclosure
• Enclosure Size: 6" x 6" x 4"
• Series: StartBox 2-Wire Decoder Compatible
• MPN: MPSR242W11
• Coil: 110V
• Control / Signal Voltage: Any 24V Lawn Controller
• Pump / Line Voltage: 120V
• MAX HP ( @ 120V ): 2 HP
• UL-50 Type 3R Listed Enclosure
• Enclosure Size: 6" x 6" x 4"
SKU:
MPSR242W11
Availability: Factory Direct
Details
Product Details
Munro Startbox - 2-Wire Decoder Compatible - Pump Start Relays
This Munro Startbox is a 2-Wire Decoder Compatible pump start relay. It's flexible, easy-to-install Munro pump start relay provides “pilot-duty” operation for all electrically driven pump equipment and works with any reliable brand of 24v lawn controller – including 2-wire systems and those that provide less than .35 amps for pump start. MPSR242 Series Smart Boxes are Available Voltage specific – 110 Volt ( MPSR242W11 ) or 220 Volt ( MPSR242W22 ) – each specially matched to the line voltage of the pump. This SmartBox eliminates the need for secondary transformers to be installed with decoders. Accepts a low amperage start signal from controller to provide all of the benefits of the standard StartBox, even though signal amperage is reduced.

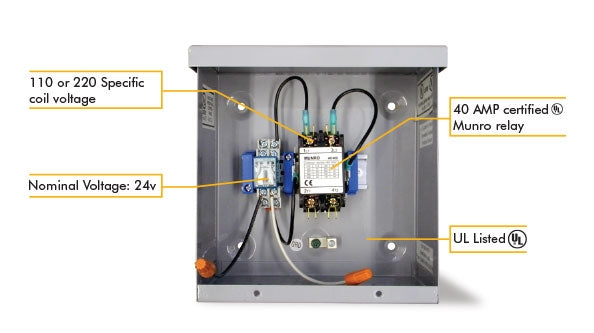

Munro StartBox Construction
• Dimensions – 6” x 6” x 4”
• UL and CUL listed relay
• NEMA 3R UL listed enclosure
StartBox - Standard Electrical Data
• Munro Relay: Certified 40 AMP Relay
• Resistive ( COS.=1 ): 12 AMPS
• Electrical Rating: 120V - 24FLA / 240V - 29FLA
• Short Circuit Rating: 120V - 5KA / 240V - 5KA
• Inrush/Run: 360MA / 270MA
• Phase/Hz: 1 / 60 Hz
This Munro Startbox is a 2-Wire Decoder Compatible pump start relay. It's flexible, easy-to-install Munro pump start relay provides “pilot-duty” operation for all electrically driven pump equipment and works with any reliable brand of 24v lawn controller – including 2-wire systems and those that provide less than .35 amps for pump start. MPSR242 Series Smart Boxes are Available Voltage specific – 110 Volt ( MPSR242W11 ) or 220 Volt ( MPSR242W22 ) – each specially matched to the line voltage of the pump. This SmartBox eliminates the need for secondary transformers to be installed with decoders. Accepts a low amperage start signal from controller to provide all of the benefits of the standard StartBox, even though signal amperage is reduced.
Munro StartBox Construction
• Dimensions – 6” x 6” x 4”
• UL and CUL listed relay
• NEMA 3R UL listed enclosure
StartBox - Standard Electrical Data
• Munro Relay: Certified 40 AMP Relay
• Resistive ( COS.=1 ): 12 AMPS
• Electrical Rating: 120V - 24FLA / 240V - 29FLA
• Short Circuit Rating: 120V - 5KA / 240V - 5KA
• Inrush/Run: 360MA / 270MA
• Phase/Hz: 1 / 60 Hz
Specification
Specification
| Controller Voltage | 24 V |
|---|---|
| Pump Motor Voltage | 120 V |
| Low Incoming Amp Compatible | Yes |
| Pump Motor HP | 1/2 HP, 3/4 HP, 1 HP, 1-1/2 HP, 2 HP |
| Pump Protection | No |
| Brand | Munro |
| SKU | MPSR242W11 |
